Driveshaft fun

Taking the rear subframe off and swapping with the one from the Santorin car is my current goal.  The thing is, in order to lower the subframe the parking brake needs to be loosened.  Getting access to the parking brake mechanism requires removing the center console between the two front seats.  To get the console out one first needs to get the handle grip off of the parking brake, and to get the grip off of the parking brake requires removing a locking pin that is on the underside of the handle, tucked back a ways that is hard to reach and basically impossible to view.

Never having removed this piece before it was challenging to say the least to release the pin when I had no idea of how it was locked in place.  Eventually after struggling with the part for a while I decided to try photographing the underside of the handle to see if that would give me a better idea of how to release the mechanism.

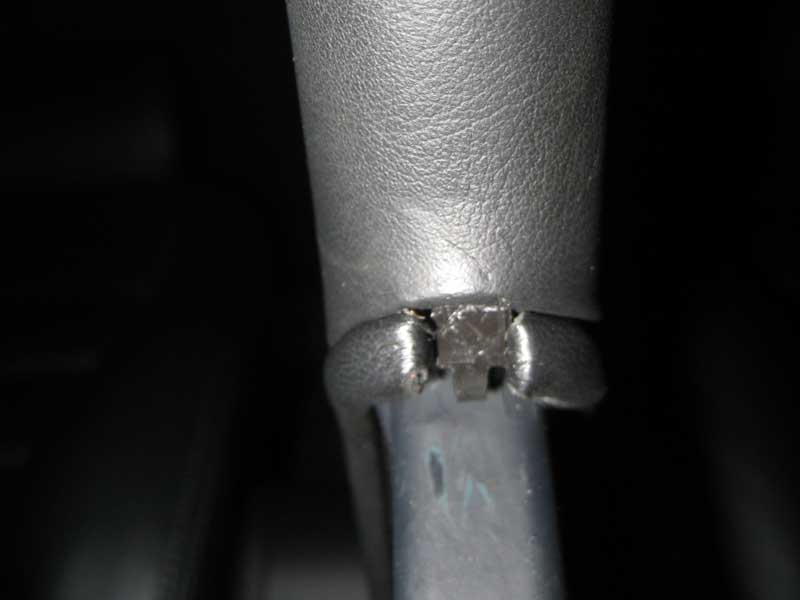

Parking brake lock

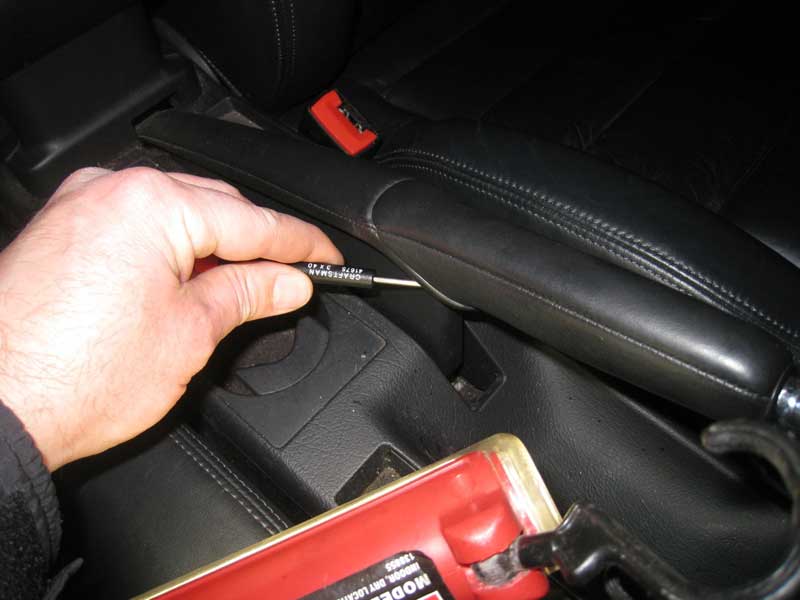

As that picture above shows, it is not self-evident how to get the pin out.  I tried using a screw driver from the front but was having no luck in getting it to catch on anything.  So I tried from the back side as shown below.

Popping the pin

Going from this direction I was successful and the pin released.

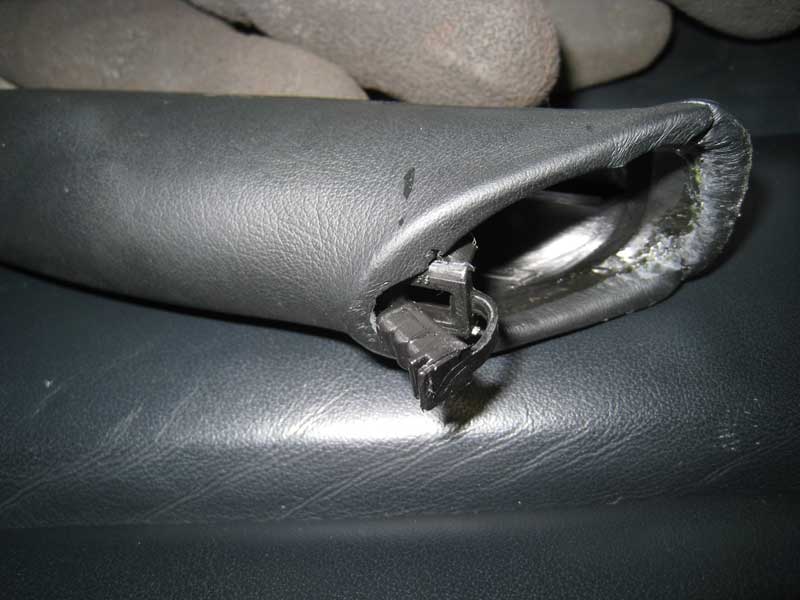

Parking brake pin released

Here you can see clearly how the pin sits up in the slot.

After getting the handle off the Bentley manual described the steps to remove the console.  There’s a nut underneath the rear ash-tray that should be removed and then the rear of the console can lift up, after removing the 2 bolts holding the front down.  I popped the ash-tray out and was presented with 2 nuts.  Hmm.  Guessing that perhaps the manual actually meant 2 nuts when it showed a diagram of just one I went ahead and removed both.  The console would barely budge though.  I worked at it for a while rocking the console back and forth thinking perhaps that over time it had seated itself really well, but that did nothing.  Once more at the point of exasperation I decided to see if perhaps I could drop the parking brake mechanism without removing the console.  It looked like if I removed the dual cup holder that might give me a shot at the parking brake mechanism.  So I popped the cup holder out and found yet another nut of the type I had removed from the back of the console.  This looked promising.

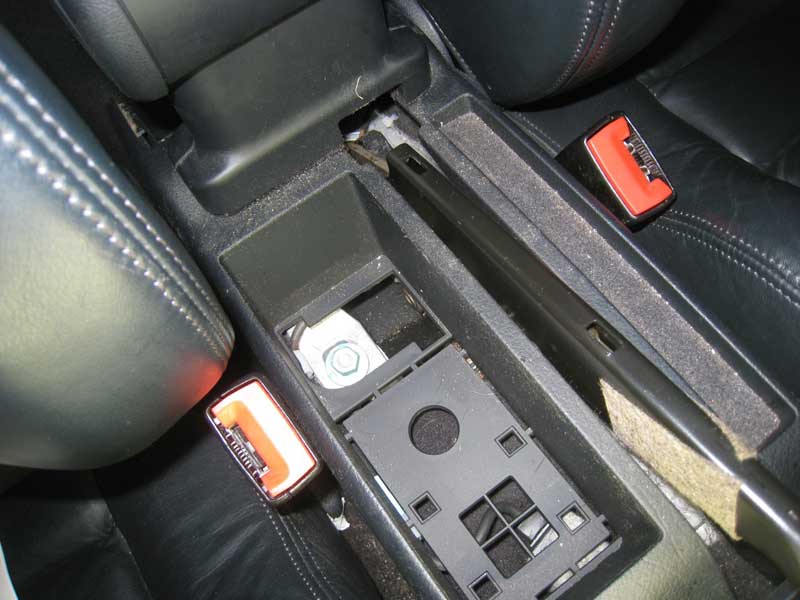

Third console nut

I removed the third nut and the whole console lifted easily.  After some maneuvering to get it around the parking brake handle it was off.  Things sure go a lot easier when you remove all the parts you need to.  I have no idea why the Bentley manual was so wrong on the removal of this part.  Seeing that there can be error in the manual I’ll be keeping that in mind as I go forward with the removal of other parts.

I returned underneath the vehicle and undertook the unpleasant task of loosening the drive-shaft from the rear differential and the transmission.  I started with the rear differential.  Getting the rear loose took quite some time so when I was finished I just took the shield off the front and hit the bolts with some liquid wrench and called it a day.

Exhaust removed

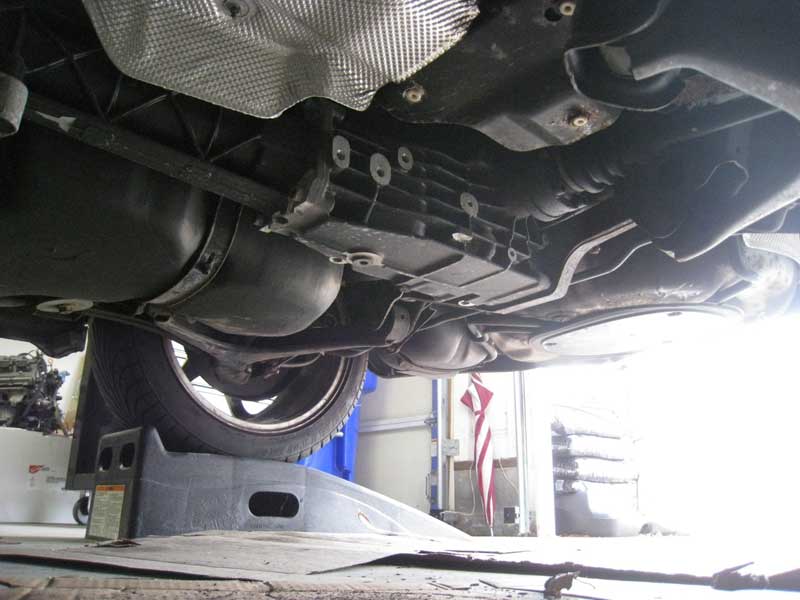

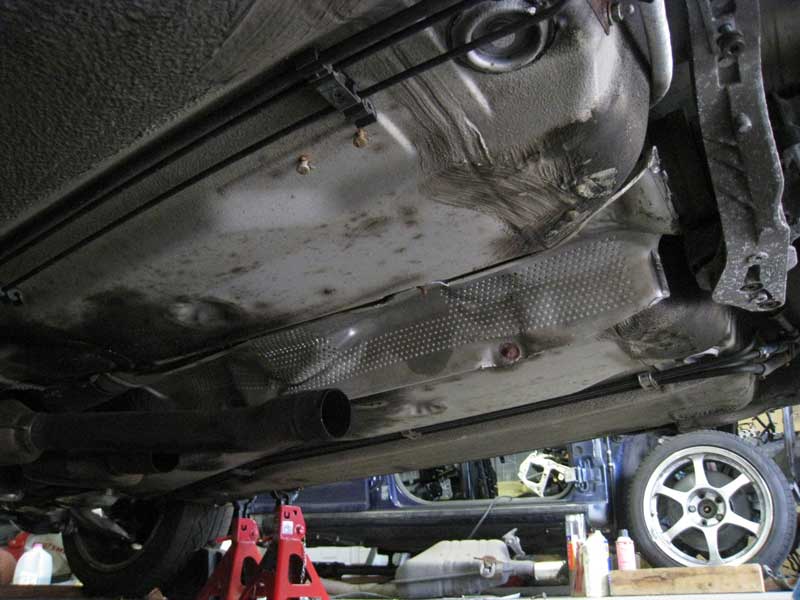

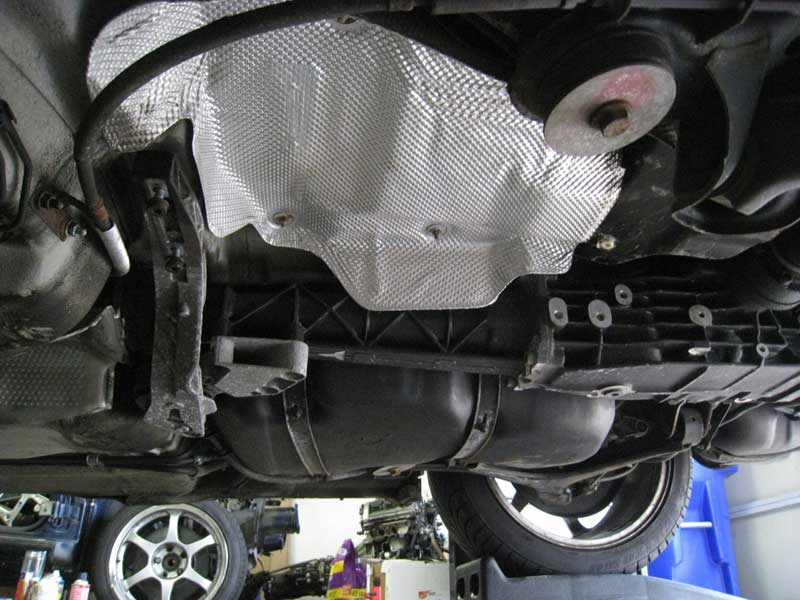

Time to get started in earnest.  I removed the rear portion of the exhaust, the muffler components today.  I think working underneath the car I’m going to have a wrench in one hand and a can of PB Blaster or Liquid Wrench in the other to spray bolts with prior to trying to remove them.  The bolts holding the muffler clamps in place were fun.  I expected these to be difficult to break loose so I started off giving them a blast of liquid wrench and moved on to something else to give the penetrant a little time to work.  With the amount of corrosion that had formed on the bolts I was a little unsure of what the right size socket was to put on the nut.  It was a toss-up between a few sockets so I went into my stockpile of parts and pulled out the old clamp from the Santorin car.  17mm was a solid fit.  That, a breaker bar, and a bit of straining got the bolt started.  Sadly, the parts were so rusted I needed to use the breaker bar to have enough leverage to back the nut all the way off, a quarter turn at a time.

Muffler removed

The torx bolts that also hold the driveshaft support came out surprisingly easy, so much so that at first I thought I might have had the wrong sized Torx bit and was stripping the bolt head.Muffler removedMost of the 13mm bolts at the rear came out pretty easily, except for the one bolt that goes into the differential carrier and is partially blocked by the sway bar.  Of course the one bolt that requires a bit of maneuvering to get to would be the one that was really stuck in good.

Muffler removed

I was going to remove the heat shield that runs along the drive shaft but to my surprise the small 10mm bolts hold it in place were stuck good enough that I decided to give them a blast of liquid wrench.  I took a break at that point.

Audi B5 S4 Pedal Assembly Removal

With things pretty set at the back end of the car I turned my attention back to the front and removing the pedal assembly.  The first thing I wanted to do was remove the brake fluid reservoir.  This turned out to be a bigger challenge than I’d expected.  I’d already drained most of the fluid so I set right into loosening bolts and undoing clamps.  After I had everything off that I could see it was evident that the reservoir was still attached somewhere because it wasn’t leaving the master cylinder.  The picture below shows why.

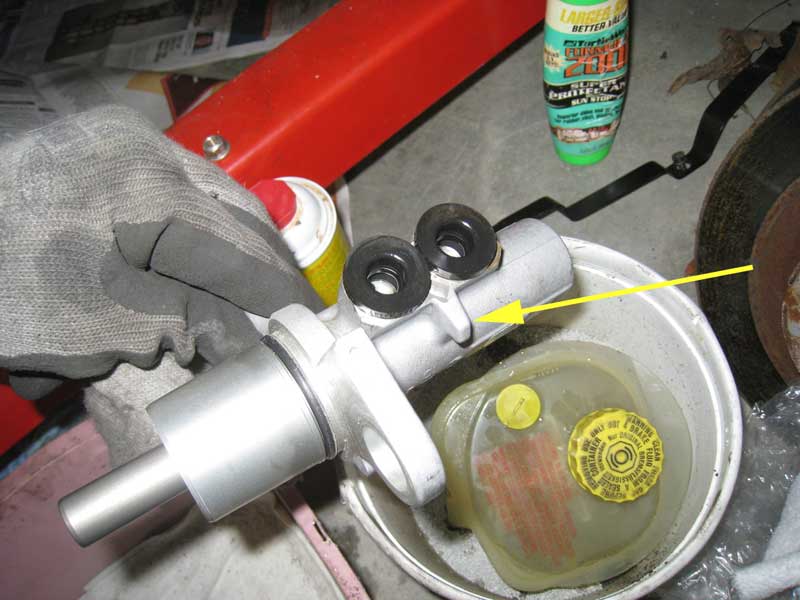

Master cylinder

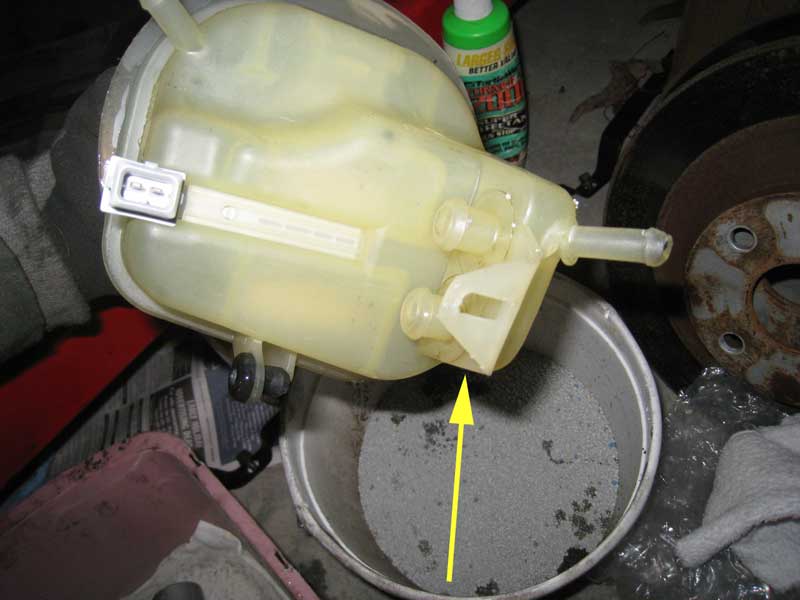

The tab on the bottom of the master cylinder locks into a notch on the bottom of the fluid reservoir, shown below.

Brake fluid reservoir

The master cylinder blocks direct access to this so separating the two is a challenge.  I found that I could put a short wrench, roughly a 13mm, underneath the master cylinder and between the plastic of the reservoir and the cylinder so that I could pry the clip open. [That probably sounds easy enough but it took me quite a while to finally figure it out.]

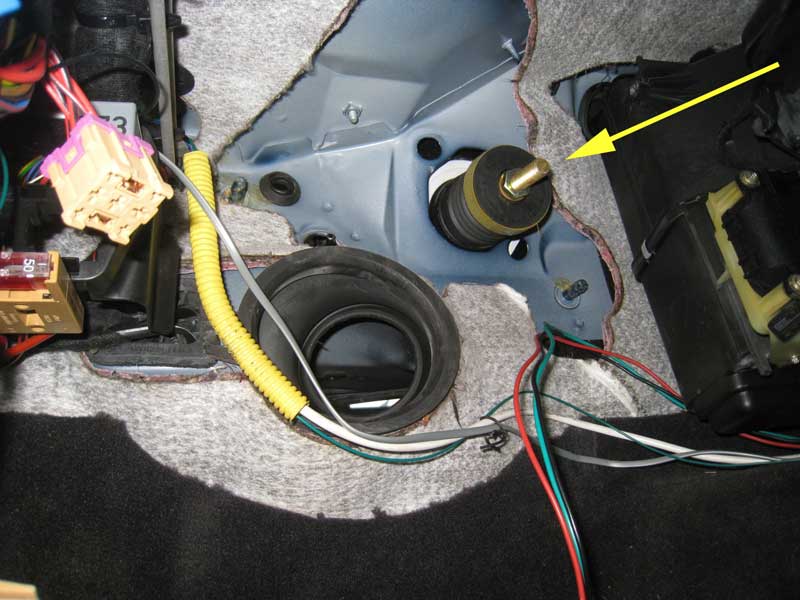

Next I moved onto removing the pedal assembly.  Having already dismantled most of the interior I thought this should go pretty quick, but again I was wrong.  The brake pedal attaches to the master cylinder via a mechanism that in a perfect world would be removed per the Bentley manual and use a special tool.  I did not have any such special tool but I did have a write-up from someone who had gone before doing this.  They described backing a bolt off a part, but at first look it wasn’t evident to me what bolt this was.  After spending sometime trying to figure the puzzle out I concluded it must be the two nuts that appeared to tighten up against one another just behind the brake pedal arm.  I was able to get a 16mm wrench on the smaller of the two, shown below.

Brake pedal nut

And on the other I was able to get a small adjustable crescent wrench.  Afterward it occurred to me that perhaps a stubby combination wrench would have worked too.  The other nut is shown in the photo below still on the master cylinder rod.

Master cylinder rodIt did not take too much force to loosen the two, and then simply unscrewing the smaller (forward) nut freed the brake pedal arm from the cylinder.

Below are a few photos from the front end of the car.

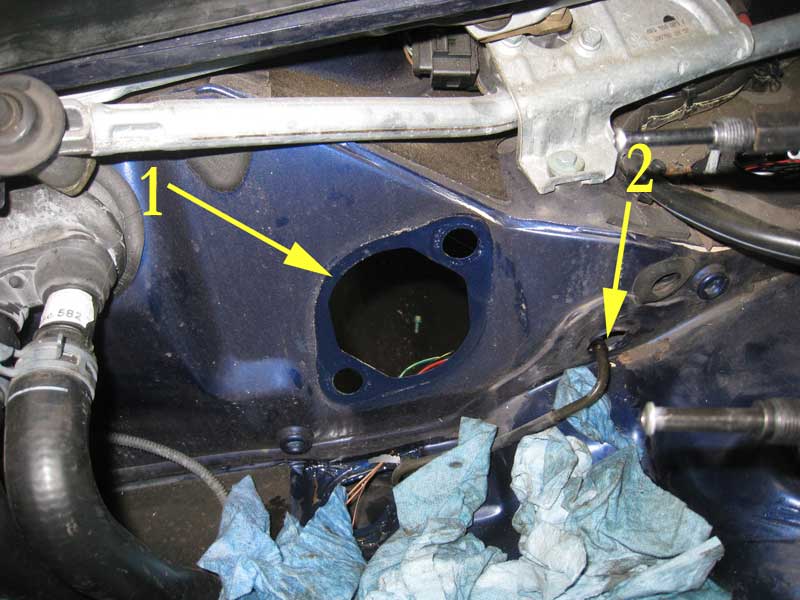

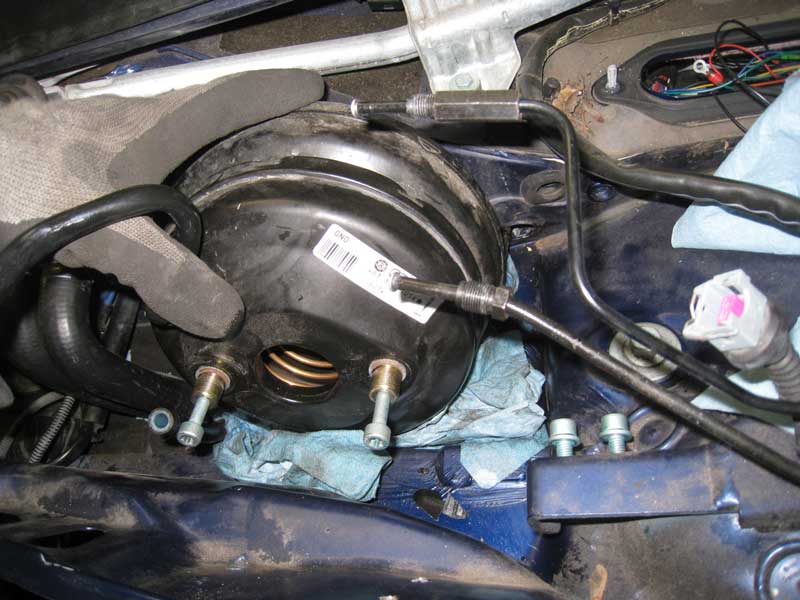

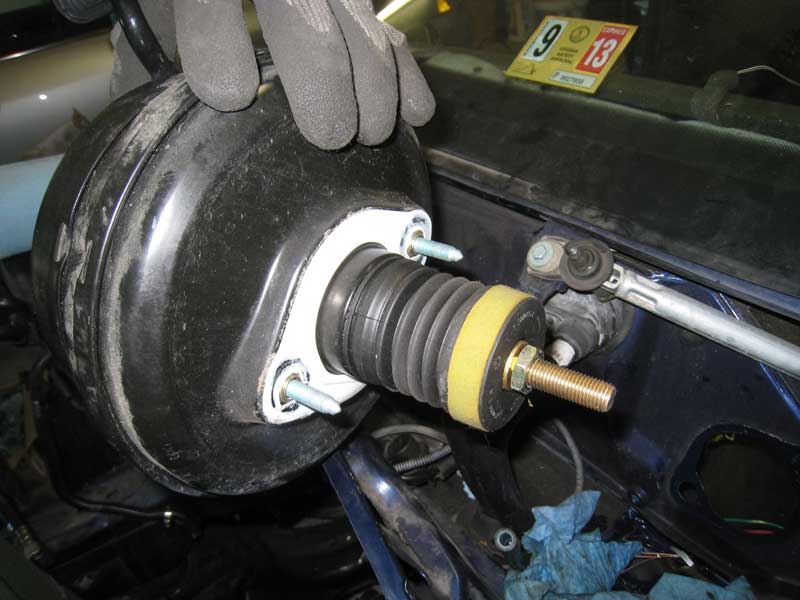

Brake boosterBrake boosterWhere the brake booster mounts (1) and also where the slave cylinder line passes into the cabin (2).  I can only imagine the fun it must be trying to remove the slave cylinder line with everything in place on the car.
