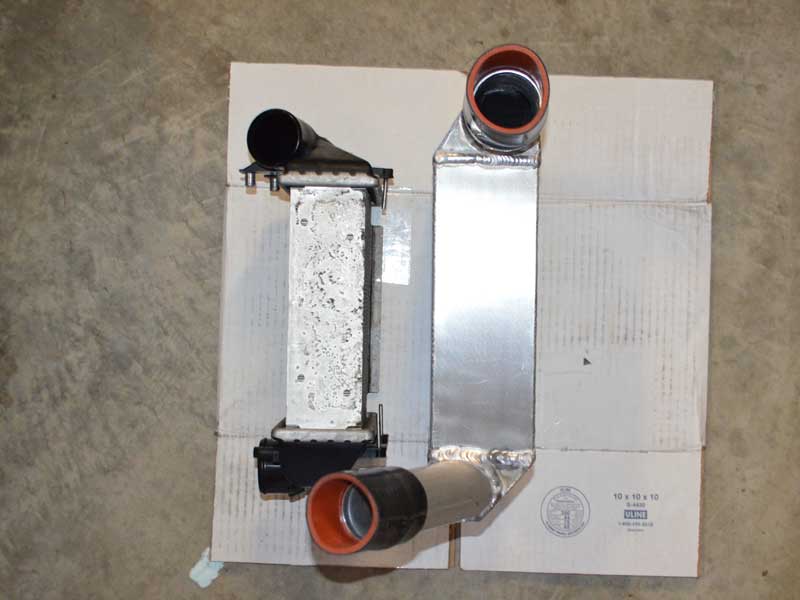

I decided to replace my Evolution Racewerks (ER) intercoolers with the Addict Motorsport Design (AMD) intercoolers.  Pictured below are the AMD intercoolers alongside the stock S4 intercoolers.

The dimensions of the AMD intercooler, which I neglected to measure during the initial IC flow test, are:

Core height: 9.75″

Core width: 8.5″, 9-1/8″ with end plates.

AMD intercooler

Core depth: 3.5″

AMD IntercoolerNumber of charge rows: 17

Fin row width: 6mm

Charge row width: 7mm

Number of fins: 102*

* – This is a difficult number to obtain because as the picture shows, there looks like a second set of fins set back in the core slightly that is offset from the frontal fins.  I’ve not seen this type of fin pattern on previous cores I have tested, unless this is an arrangement that occurs further in the core on other intercoolers and wasn’t as clearly visible.

AMD intercooler

AMD intercooler flow test

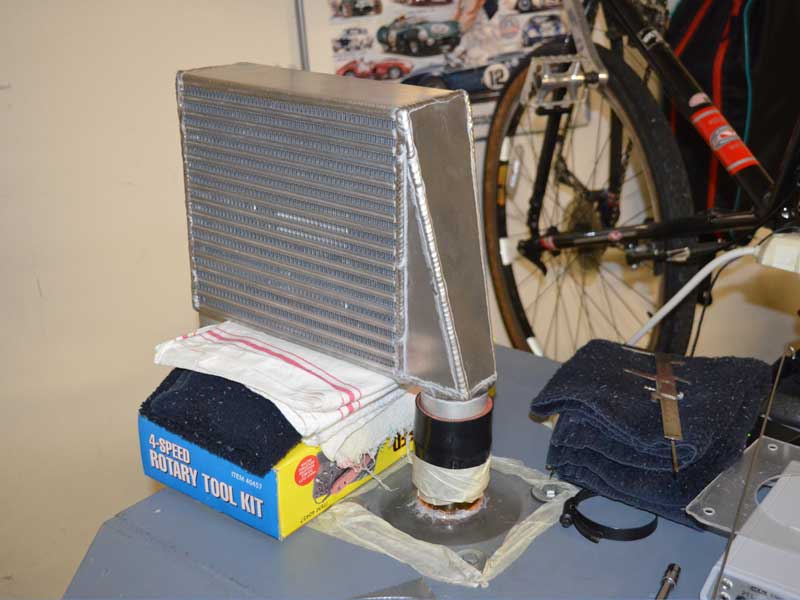

AMD intercooler on flowbench with proper size (2.25″ diameter) adapter.

As noted in the above caption, the first test of the AMD intercooler was done with an adapter sized for the more common intercooler outlet pipes which measure 2″ in diameter.  When the Apikol intercoolers became available, also 2.25″ diameter outlets, I was able to use a proper size adapter to test them, but the AMD intercoolers that were loaned for testing were already gone.

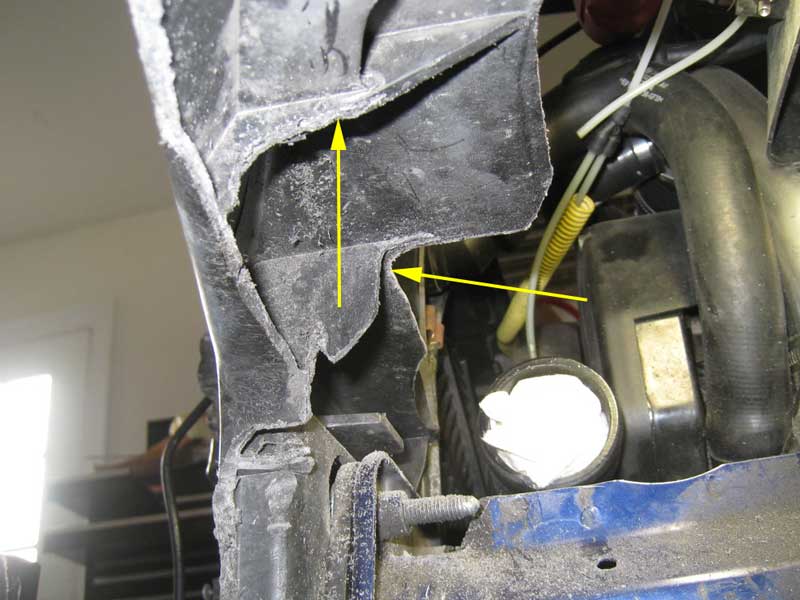

AMD intercooler installation

AMD intercooler installation

AMD intercooler installation

AMD intercooler installation

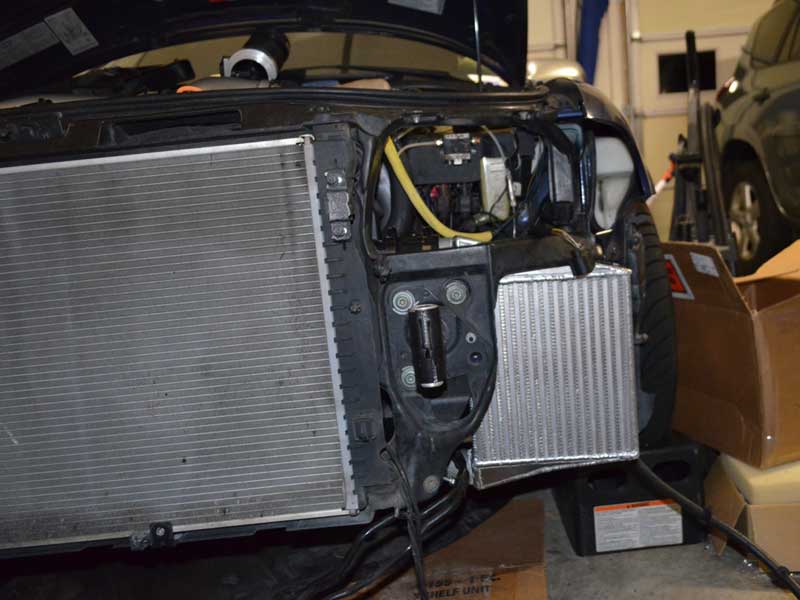

AMD intercooler installed driver side
AMD IC driver side installed
AMD intercooler passenger side

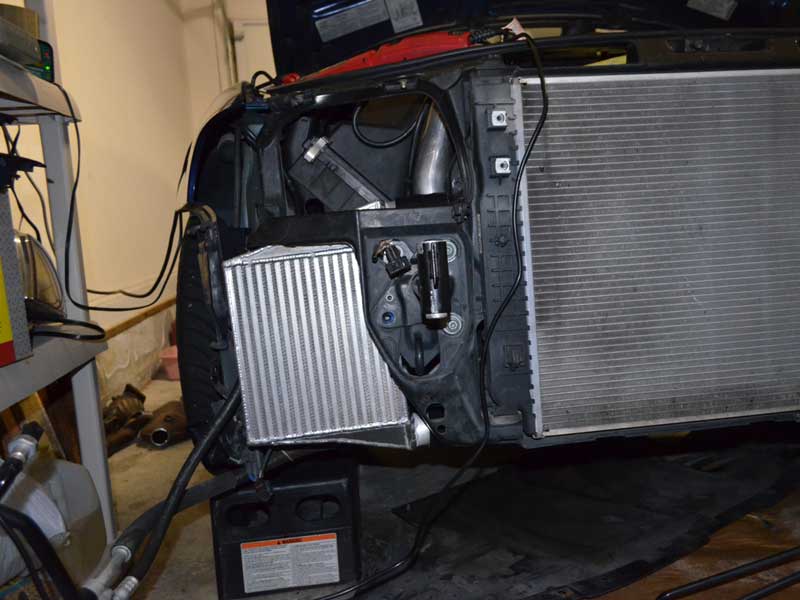

AMD intercooler test fit, passenger side

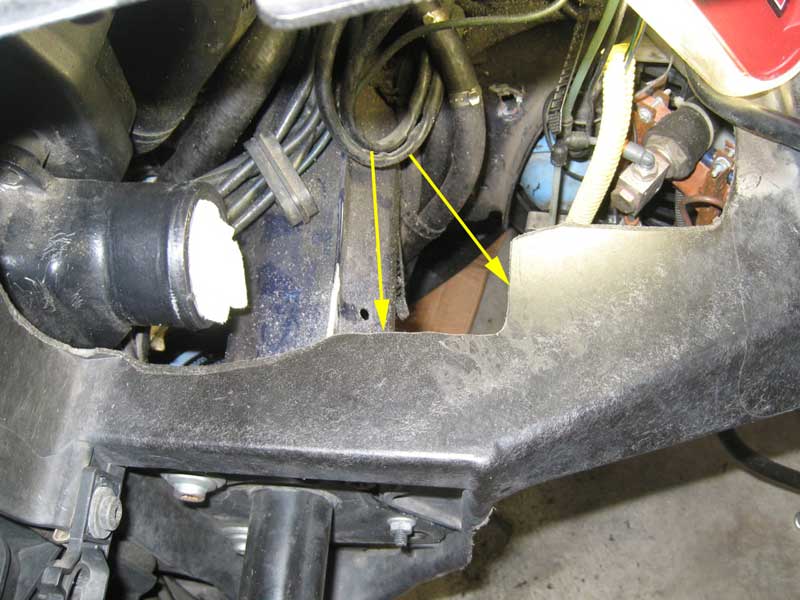

Trimming of the car is still underway for the passenger side.
