Cylinder Head Flow Test

I’ve not yet done flow testing of the 2.8NA and 2.7T heads though I have a set of each.  Until I have done my own test I’ll be presenting these results provided by another owner.

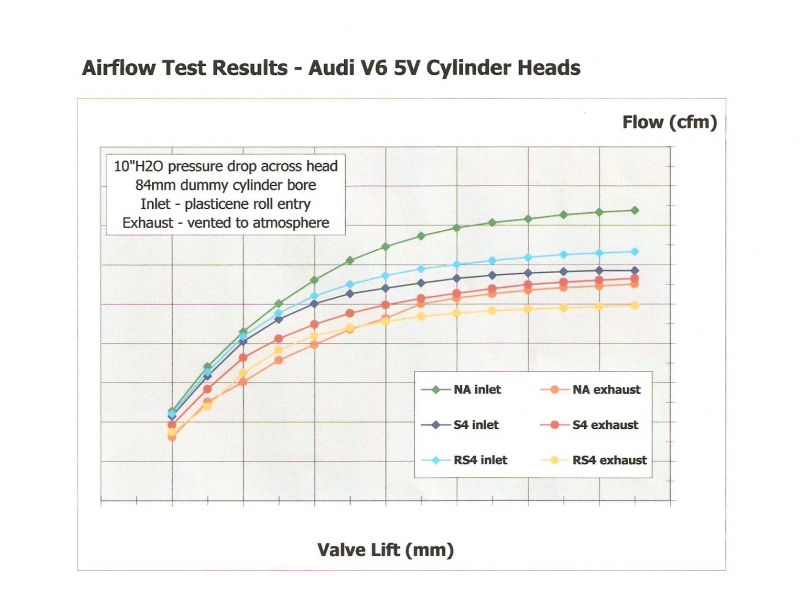

Audi Cylinder Head Flow Comparison

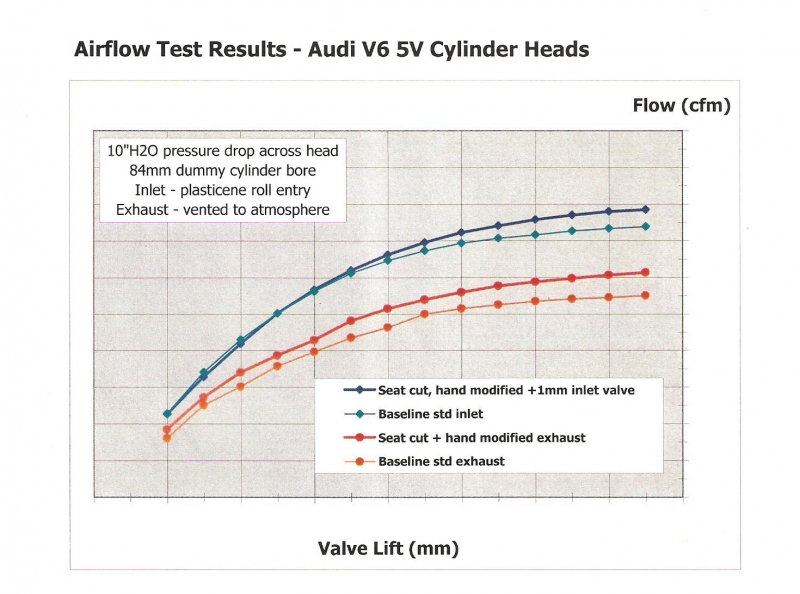

Audi Cylinder Head Flow Comparison Oversized Valves
Modified Heads
