I’ve slowly been making progress, mainly working on replacing the spider hose with some silicone hose and repairing a damaged downpipe.  The first length of hose that I purchased was a little bit large, so there was a delay in getting a better fitting hose, then I decided I wanted to use the Oetiker clamps and that required purchasing a few more.  When it came to the downpipe I brought it to a local exhaust specialist but they didn’t think there was anything they could do with it.  Luckily the shop that I have my car serviced at, HB Motorwerks, also does some fabrication and they didn’t think there’d be any problem repairing the downpipe.  They did say it would be best to be able to put the pipe on the engine to verify the fitment, so I hauled the engine and transmission to their shop so that they could do the repair.  A day later the downpipe was repaired and I was retrieving it.

I’m now in the home stretch, putting parts back onto the car, and when I got to the motor mounts I realized that once the TiAL inlets go into place there won’t be any way to adjust the motor mounts.  Since I’m swapping out the stock motor mounts for a pair of Stern motor mounts I knew that I’d want to verify the orientation of the mounts was correct prior to tightening them down.  I decided I’d put the motor into the car so that I could make sure the mounts were properly oriented, and this would also be an opportunity to check that in removing the front sub-frame I hadn’t left something out of position.

The motor went into place and the mounts were adjusted and tightened down.  Next up I’ll take it back out and put the piping on for the final install.

With things pretty set at the back end of the car I turned my attention back to the front and removing the pedal assembly.  The first thing I wanted to do was remove the brake fluid reservoir.  This turned out to be a bigger challenge than I’d expected.  I’d already drained most of the fluid so I set right into loosening bolts and undoing clamps.  After I had everything off that I could see it was evident that the reservoir was still attached somewhere because it wasn’t leaving the master cylinder.  The picture below shows why.

The tab on the bottom of the master cylinder locks into a notch on the bottom of the fluid reservoir, shown below.

The master cylinder blocks direct access to this so separating the two is a challenge.  I found that I could put a short wrench, roughly a 13mm, underneath the master cylinder and between the plastic of the reservoir and the cylinder so that I could pry the clip open. [That probably sounds easy enough but it took me quite a while to finally figure it out.]

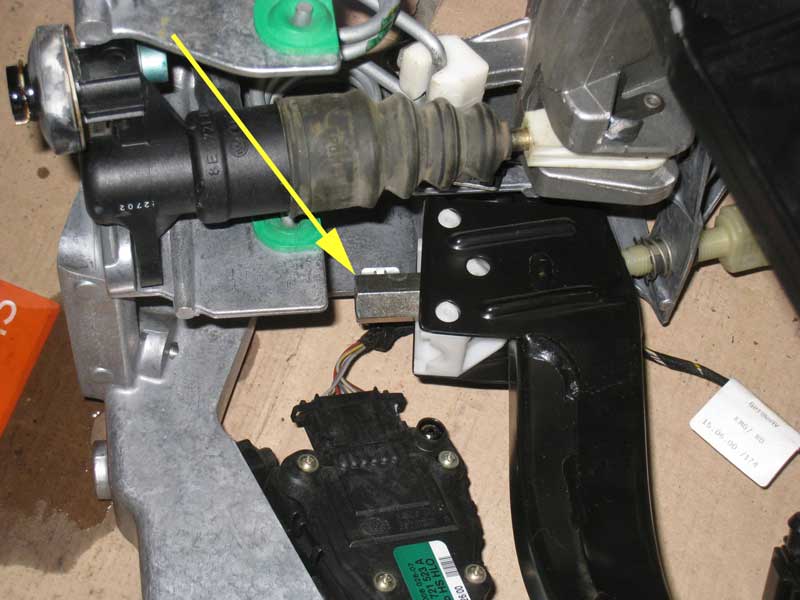

Next I moved onto removing the pedal assembly.  Having already dismantled most of the interior I thought this should go pretty quick, but again I was wrong.  The brake pedal attaches to the master cylinder via a mechanism that in a perfect world would be removed per the Bentley manual and use a special tool.  I did not have any such special tool but I did have a write-up from someone who had gone before doing this.  They described backing a bolt off a part, but at first look it wasn’t evident to me what bolt this was.  After spending sometime trying to figure the puzzle out I concluded it must be the two nuts that appeared to tighten up against one another just behind the brake pedal arm.  I was able to get a 16mm wrench on the smaller of the two, shown below.

And on the other I was able to get a small adjustable crescent wrench.  Afterward it occurred to me that perhaps a stubby combination wrench would have worked too.  The other nut is shown in the photo below still on the master cylinder rod.

It did not take too much force to loosen the two, and then simply unscrewing the smaller (forward) nut freed the brake pedal arm from the cylinder.

Below are a few photos from the front end of the car.

Where the brake booster mounts (1) and also where the slave cylinder line passes into the cabin (2).  I can only imagine the fun it must be trying to remove the slave cylinder line with everything in place on the car.
