After wrapping up the K03 dyno session yesterday I’ve got all the data I care to collect for now on those turbochargers.
Today I began the process of moving up to a pair of BorgWarner K04’s. One addition to the toolbox this time around is a Milwaukee 3/8″ drive electric ratchet.
I’m hoping that the electric ratchet will help to speed up the engine removal process.
I put in three and a half hours today and made some good progress. I’m hoping with about two more hours time I’ll be ready to remove the motor and start to swap over to the K04’s
Today I dyno’d my S4 with K03 turbochargers and a couple of different engine tunes capping a long process of collecting baseline performance data for the car on these turbochargers.
Along the way I received some significant support from Nye and Daz at the Nefmoto forum and Doug at FrankenTurbo.
The charts below show the final results on the dyno but are only a portion of the data collected on ET Tuning’s Dynojet dyno. More results will be posted as I plot the data showing various comparisons.
Best numbers from the two stock tune pulls: 253 wtq / 237 whp
BorgWarner K03’s With the stock B5 S4 tune
Best numbers from the two Nef tune pulls: 362 wtq / 283 whp
BorgWarner K03’s on the Nefmoto B5 S4 community tune
Stock pulls vs Nef tune pulls
Stock tune vs Nef community tune on K03’s
The ‘proof I was there’ shots.
Post activity on the dyno
I also did a set of pulls using the NVR Stage 2++ tune that used to be available on the Netmoto site. This tune came with a warning to ensure the K03’s were in good shape as it runs a lot of boost. This is apparent through the mid-range where the torque remains strong compared to the Nef tune that immediately begins ramping down the boost pressure following the initial spike.
Best numbers from the two NVR tune pulls: 375 wtq / 303 whp
NVR Stg2++ vs Nef Community Tune
The DynoJet software has a function for reporting the area under the curve (AUC) for the torque and horsepower. As a way to illustrate the performance difference from the stock to Nef to NVR tunes as a percentage value, rather than horsepower or ft-lbs, which can be contentious since dyno’s can read differently, I’ve tabulated the various AUC values and show the percentage increase as the tune is made more aggressive.
Here’s an approximation of where these three tunes land on the K03 compressor map.
Fuel Injector Duty Cycle (you want to play, you got to pay):
IDC
Timing: This is a single sample of Timing from each tune. If all six timing curve lines were shown it would be hard to read due to the overlap in timing values.
K03 Dyno Timing Curves
The chart below illustrates the temperature rise that occurs in the turbocharger with the different boost levels that each tune operates at. Temperature out of the turbocharger is recorded approximately 18 inches downstream of the outlet coupler, which allows for some temperature drop before the reading is taken. This means that the temperature exiting the turbocharger is greater than shown below. The tunes were recorded in the following order: Nef, Stock, NVR.
Air temperature into vs out of the turbocharger
The next chart shows the temperature of the exhaust gasses going into the turbine as recorded by the RS6 exhaust gas temperature sensors (upper lines). The temperature of the gasses leaving the turbocharger turbine housing are recorded downstream at the bottom of the downpipe (lower lines), prior to the catalytic converter, by a K-type thermocouple. It’s expected that the exhaust gasses will have cooled some by the time they reach the thermocouple. The downpipes are ceramic coated with the Swaintech white lightning coating and then wrapped in DEI exhaust thermal wrap which may help reduce the heat loss through the downpipe.
Pre & Post Turbine Exhaust Gas Temperatures
Interestingly the significantly different manifold pressures developed by each tune do not appear to have an affect on the exhaust gas temperatures.
This next chart shows the intake air temperatures as recorded by the vehicles temperature sensor inside the intake manifold. Even though these pulls were done on K03’s and with a little help from some water-methanol injection, I am still impressed by the performance of the SRM intercoolers.
Intake Air Temperatures
I decided to supplement the intercoolers with WMI as a result of prior experiences on dyno’s having absurdly high intake temperatures. None of the tunes were adapted for WMI so I wanted just enough liquid to help keep temperatures down over several pulls. I went with a pair of Aquamist nozzles, one sized 0.5 mm and the other 0.6 mm. Together with the TorqByte WMI controller I had the setup configured to flow no more than 300 mL/min. By comparison, on a pair of 1 mm nozzles the system can flow up to 1000 mL/min.
One of the hopes I have with using the dyno is to be able to come back later and produce similar results. To see how realistic this may be I dug up a set of DynoJet logs that I made with my car in 2005 just prior to having APR’s Stage 3 kit installed. At the time the car was equipped with stock intercoolers, AWE-Tuning’s downpipes, and a Supersprint exhaust.
Fast forward to 2015 and a mostly stock version of my S4 is going back onto a DynoJet, this time with SRM intercoolers, Autospeed downpipes, and 034 Motorsport’s 3.5″ single exhaust, along with a WMI system.
Here’s how the results from two different dyno’s separated by about 900 miles and ten years panned out. 2005 it was about 70 degrees at the dyno, in 2015 it was around 60 degrees.
To help better break out the results I exported the data and reformatted it.
Another question that can be asked is how accurate the DynoJet figures are at representing the true torque and horsepower produced by the car.
As a cross check I like to look at road calculated values and compare them with what the dyno is reporting. The curves below are for each of the tunes on the street.
Road Calculated Curves
Here are the peak values tabulated along with the peak MAF reading, which I have found correlates pretty well with the wheel horsepower figures when using a stock MAF housing.
Road Calculated Maximum Values
Here are each of the tunes broken out with a Road versus DynoJet chart:
Stock
Stock Road vs DynoJet
Nef
Nef Road vs DynoJet
NVR
NVR Road vs DynoJet
I believe the DynoJet reads higher than what the true values are, but the repeat-ability of the device makes it a good tool for what I am using it for.
This is the initial results of wiring up the TorqByte WMI controller in my S4 and then running the Aquamist Flow Sensor off the WMI controller.

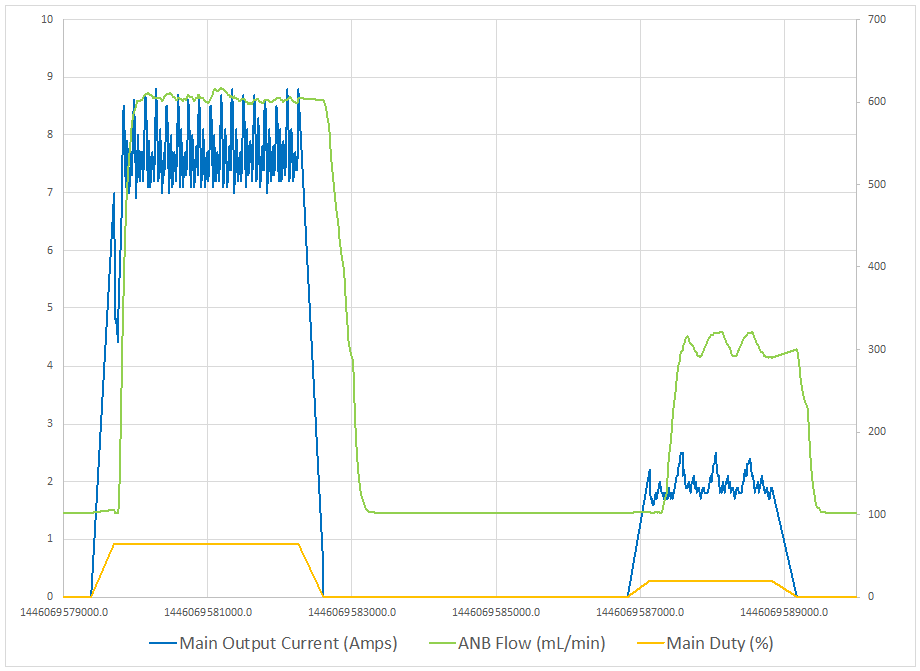

TorqTune Initial Settings Output
There will be a full write up on the TorqByte CM5-LT water-methanol injection controller coming soon, but for the time being I am working on getting it wired up and verifying that the wiring and configuration of the TorqTune software is correct.
What is illustrated in the chart above is the WMI pump duty cycle, as specified in the TorqTune settings, the pumps output current, and the resulting water-methanol fluid flow rate. This is using the TorqTune software to trigger the injection while the engine is idling with no boost.
As can be seen, a moment after the current increases the water-methanol flow rate also increases, what I was expecting to see with a properly setup system.
