Apikol Transmission Mounts Installed

These Apikol transmission mounts have been sitting in a bag for a couple of years now, I finally decided to replace my worn 034 Motorsport density line mounts with the Apikols.

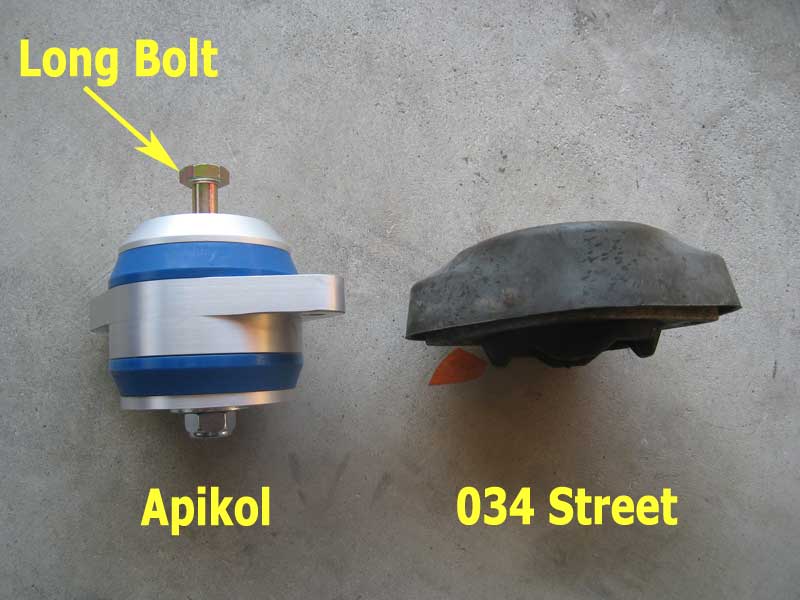

apikol and 034 motorsport Audi B5 S4 transmssion mountsWhat is immediately noticeable is how much thicker the Apikols are than the street density line.  I never had any complaints about the 034 mounts, but in keeping with aftermarket part advertising philosophy, if it’s bigger it must be better.

I was in the process of installing my motor when I made this swap, which seemed like a logical thing to do, it is, but I had an unanticipated delay with these mounts.  You see, since they’re thicker they require a longer bolt, a good amount longer as a matter of fact.  So much longer that my S4 said, uh-uh, that’s not going in without a fight.  Getting the passenger side bolt through was a major pita.  As a reminder, the bracket for the transmission mounts sits directly below the downpipes, those 3″ downpipes that all aftermarket equipped cars must upgrade to.  On top of that there is the heat shield between the down pipe and where the bolts sits, making it even harder to put the bolt through as you are putting the motor in the car.

Why did I choose to install these while putting the motor in?  So that with them not yet in place the transmission brackets would easily clear the sub-frame and make putting the transmission and motor in easier.

After a while, much too long, some profanity, thoughts of saying screw it I’ll put the old mounts back on, and an idea to reverse the bolt – which soon became apparent was not going to make things much easier, hallelujah!  It finally fell into place.

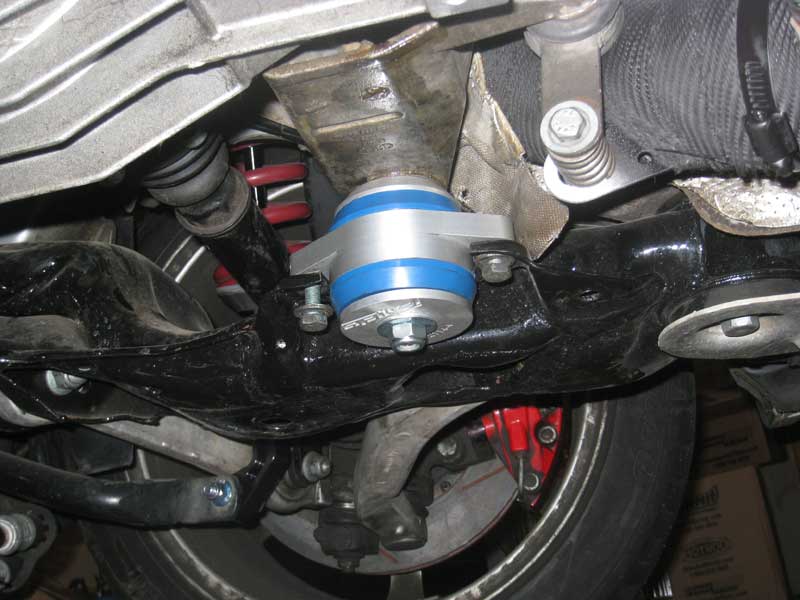

apikol b5 s4 transmission mountThe driver side was also a bit of a challenge, but not nearly so much as the passenger side.  In all it took longer to put those two bolts in place than it did to get the motor and transmission back into the car.

It better ride like it’s on pillows after all that effort.
