Nefmoto Revised AFR

After revising the requested AFR for accelerator pedal position, shown immediately below:

Nefmoto TunerPro requested AFR table

the car was logged with the results below.

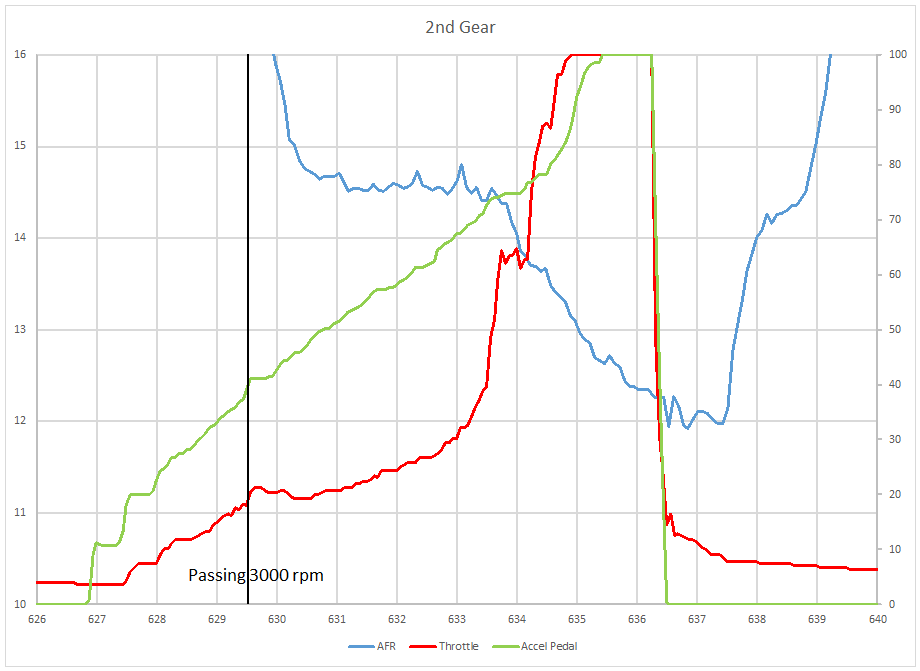

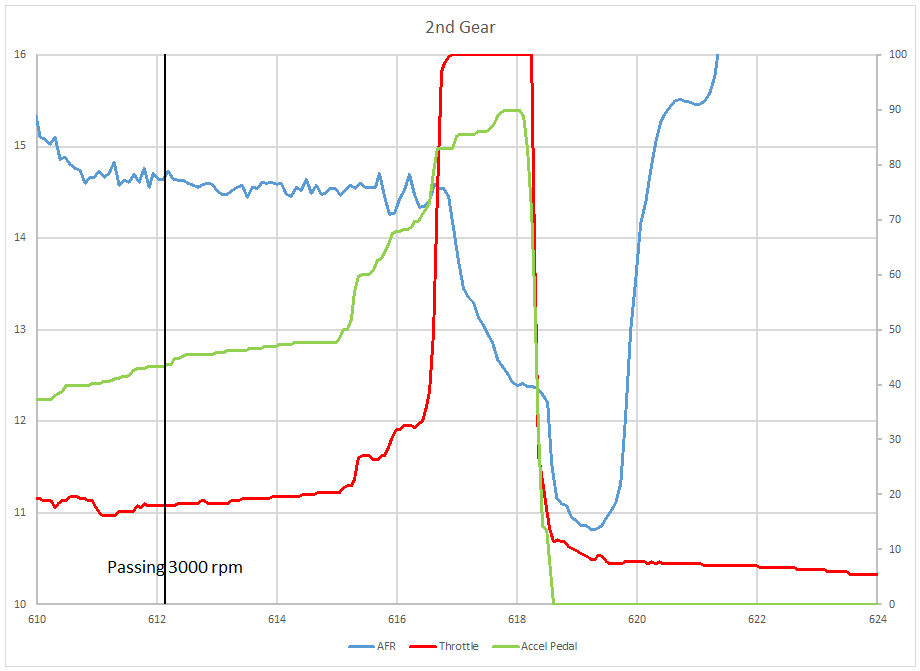

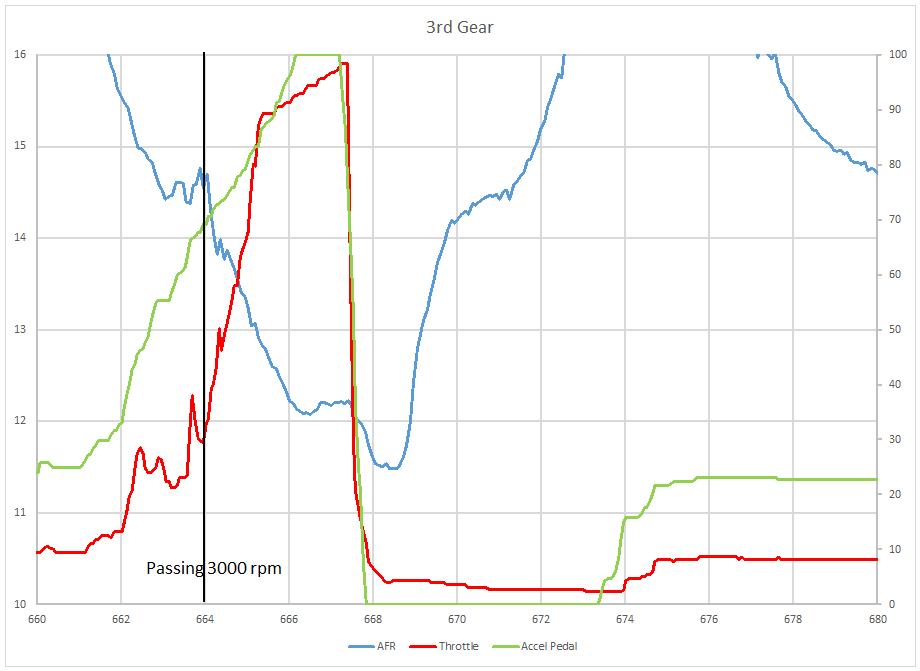

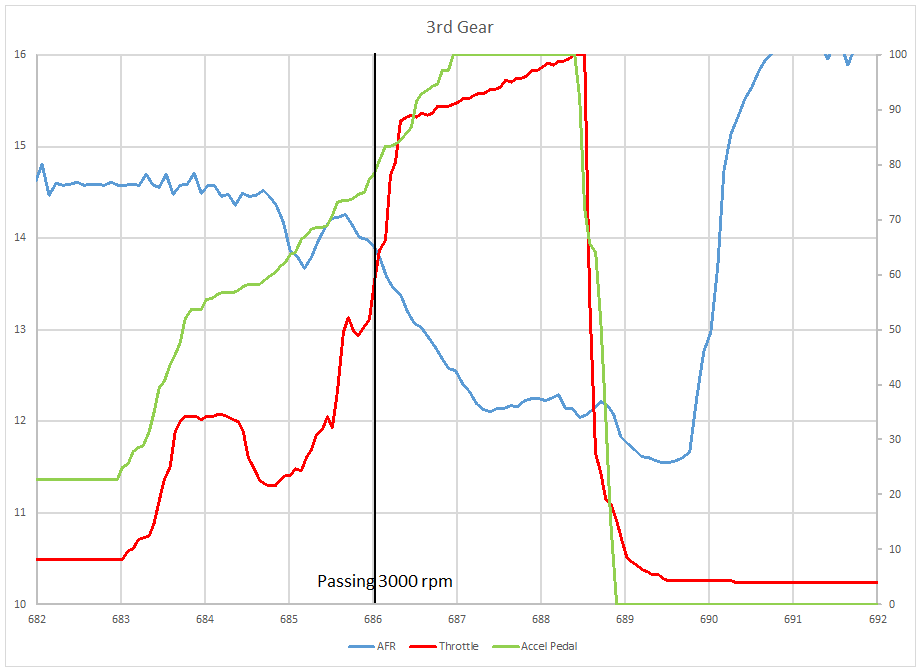

Charts show the Accelerator Pedal position, Throttle Plate angle, and AFR versus time.  I also drew in a line showing when RPM passed 3000.  All data was collected during acceleration and 3000 rpm is the first rpm row where the revised AFR is engaged.


2nd_b 3rd_a 3rd_b
