Turbo Temp Gauges Wired

Today I wired up an additional two gauges, the temperature sensors feeding into these gauges will take readings going into and out of the turbochargers.

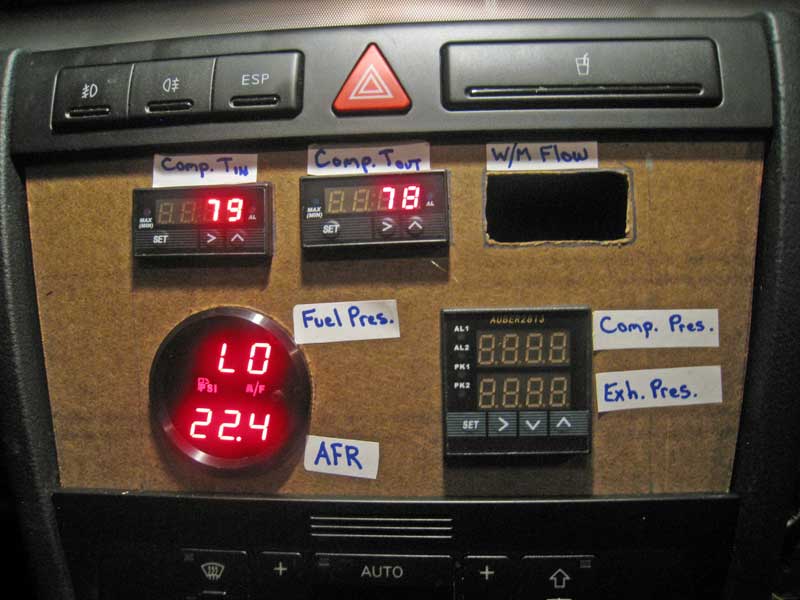

Gauge Panel with Turbo Temperature Gauges Wired UpI also swapped the labels for the Fuel Pressure and AFR readouts.

For the exhaust pressure I am using a custom spec’d pressure sensor from Dwyer Instruments.  I’m not confident in some of the inexpensive pressure sensors I have used in the past so I decided to go with a company that has a long history of making gauges and sensors.

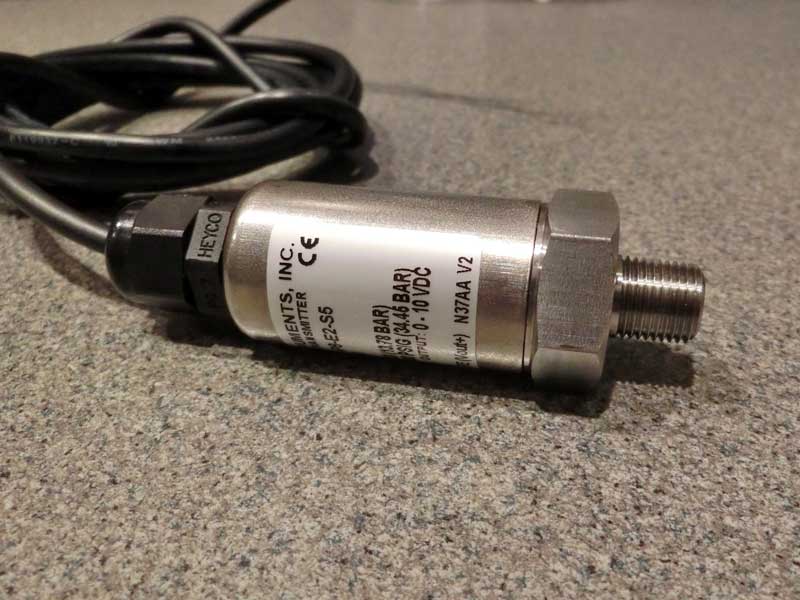

Dwyer Pressure Sensor

This particular sensor will read from 0-100 psi gauge pressure with 0.25% accuracy.  It has a 0-10V output which will work well with the Dataq datalogger that can read a 0-10V input.

With a 1/8″NPT to -4AN adapter I’m just about set to begin recording exhaust pressure with this sensor rig:

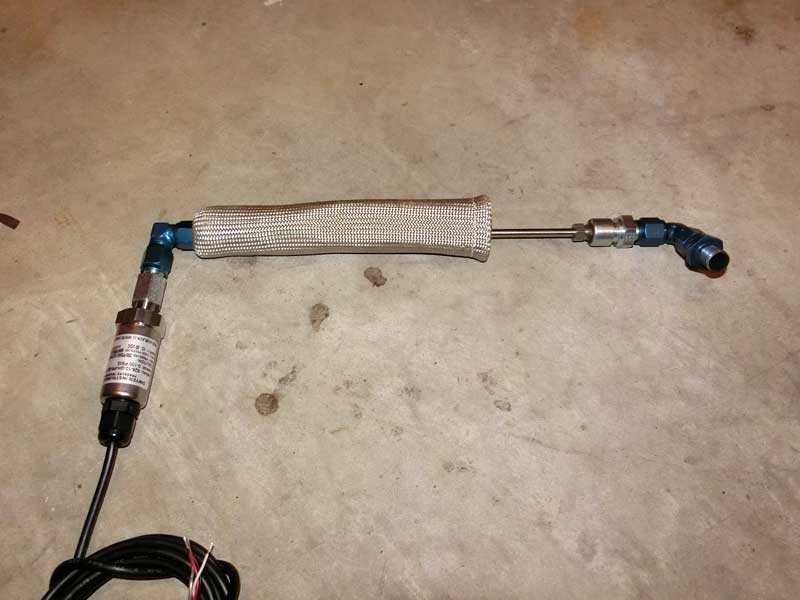

Exhaust Gas Pressure Sensor Rig
