IAT Problems

Intake air temperature is a critical component of engine performance, colder air is denser which allows more air to enter each cylinder and more fuel to be burned, resulting in more power output.  Conversely, if the intake air temperature climbs the air entering the engine becomes less dense and less fuel can be burned, decreasing power output.  Increasing air temperature also moves the gasoline closer to the point where end gasses can become unstable leading to knock.

Keeping air intake temperatures low is a significant challenge on a turbocharged car, so much so that auto manufacturers frequently equip turbocharged cars with heat exchangers (aka intercoolers) purposefully built to lower the temperature of air entering the motor.

Today I wanted to investigate how the intake air temperatures changed during normal driving.  With one air temperature sensor located between the turbocharger and the intercooler, and another located between the intercooler and the engine, I would be able to observe how the intercooler performed as well as the general change in temperature through the system.

Auber Instruments Air Intake Temperature Sensor

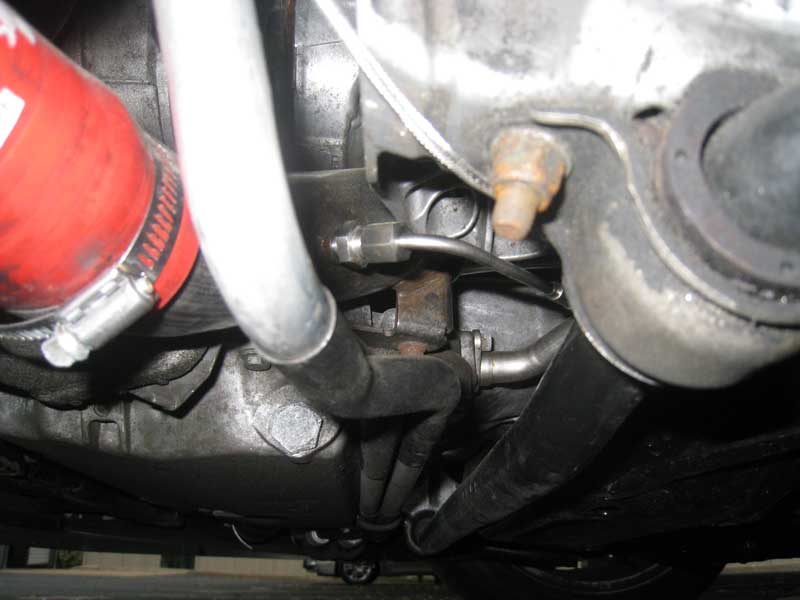

Auber Air Temperature Sensor installed in charge pipe joining turbo and intercooler

Upon start up in the morning when the engine was cold all three temperature readings, the vehicle air intake temperature sensor, the instrument cluster displayed outside air temperature, and the Auber sensor in the charge pipe all read nearly the same, about 75 degF.  Shown by the green line in the chart below.  The horizontal axis is time in seconds and the vertical axis temperature in degrees Fahrenheit.

Intake Air Temperature Rise
Cold Start Intake Air Temperature Rise Pre and Post Intercooler

What grabs my attention on this chart is how quickly the air temperature passing through the intake rises (Orange line is pre intercooler, blue line is post intercooler).  The stock intercoolers are doing a good job initially, but the air exiting the turbocharger continues to steadily climb, even though the car is not being operated under any heavy loads.  It isn’t until about 12 minutes (810 seconds) into the drive that the first heavy acceleration takes place.  That acceleration has a momentary affect on the temperature causing an upward spike, but the air temperature quickly drops back to the pre-event level, but it continues to climb upward.

After just over 15 minutes of driving the temperature leaving the turbocharger at steady state driving is 50 degF higher than the air temperature entering the intake system.

After letting the car cool for the afternoon I went out for another drive approximately 6 hours after the first drive.  The log for that period is shown below.

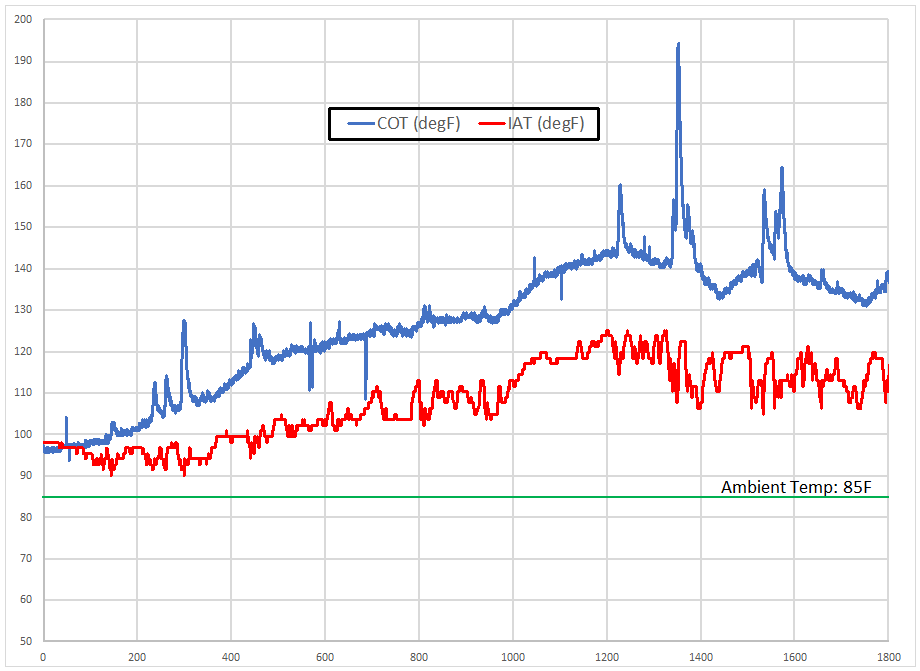

IAT Rise Chart
IAT Rise 6 Hours After Previous Drive

Not surprisingly the starting temperature is about 10 degF higher than the afternoon ambient temperatures since the car retains heat for a long time.  As with the morning drive the intake air temperature starts to climb upward almost immediately.  Once again, after approximately fifteen minutes of driving the temperature of the air exiting the turbocharger is about 50 degF higher than the starting temperature.  The air at this point going into the intercooler was 145F without any boost pressure being applied, 60 degF above ambient temperature!

What’s Next:

It’s evident to me that the intercoolers, regardless of whether they are stock or aftermarket, do an excellent job of masking a potential source of improvement on this car.

The question I now have is, does the air passage through the turbocharger cause the dramatic rise?  Could it be the close proximity of the turbo inlet pipe to the exhaust manifold?

Silicone reducer hose

Given the substantial affect that air temperature has on the engine’s performance, and the fact that even without boost pressurizing the charge air the temperature of the air going into the intercooler is 50-60 degrees above the ambient temperature, there appears to be an opportunity to improve the engines output if a solution can be found for bringing the intake air temperatures down.
